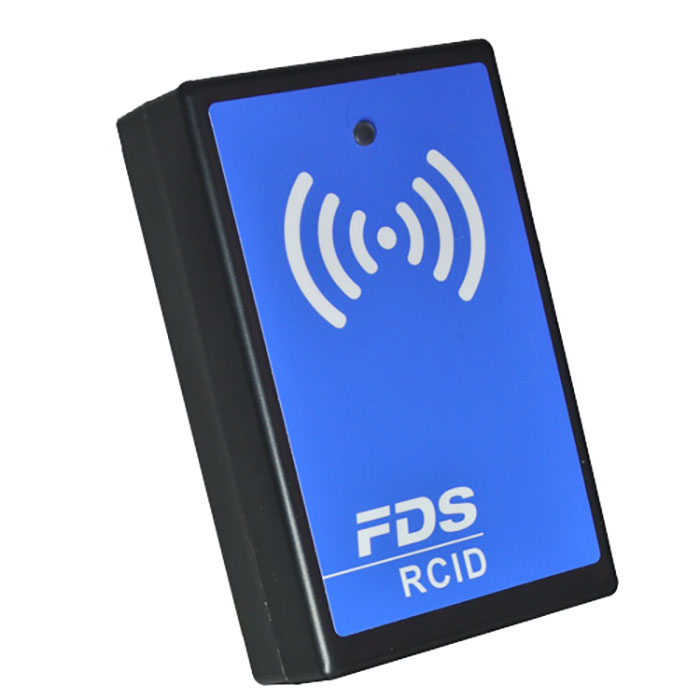

FDS-A10266 RFID Box Remote Control ID
The competitor ID remote control RCID automates your training timing requirements by allowing your competitors to self-identify themselves to our TBox and iOS app before they leave the start. A 125khz RFID antenna mounted at the start, detects our RFID badges or wristband worn by the competitor.
RCID can either be connected to a WIRC/WINP at the start gate, or directly to a TBox RS232 input.
The detected competitor ID is transmitted (before the start) to one of our iOS timing Apps which would be connected to a TBox.
If using third party timing software, once a time stamp is generated, it will be identified directly in the TBox with the competitor ID.
RFID
125khz compatible RFID technology
Compatibility
Compatible with our WIRC, WINP, Start Gate and TBox
| RFID detection | 125khz Standard badge |
| Output | RS232 8,1,9600bds (FDS protocol) |
| Operating temperature | -20°C to 60°C Battery charging should only be done between 0°C and 45°C |
| Battery | LiPo 2200mAh |
| External Power Input | USB compatible (5V +/- 5%) up to 1A |
| Autonomy @20°C | 60 hours |
| Dimension | 125x80x40mm |
| Weight | 170g |
