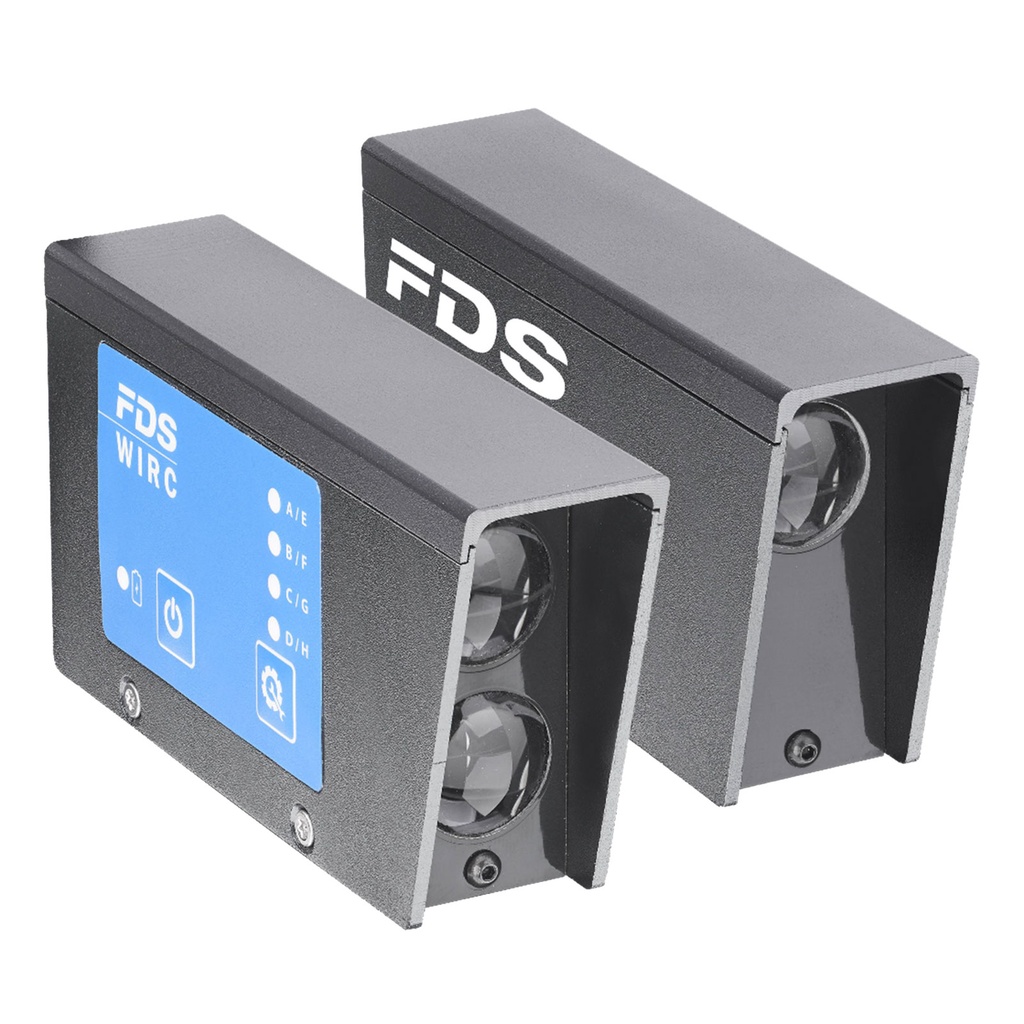

FDS Photocell WIRC Thrubeam Wireless
Smart and compact, the Wireless Infra-Red Photocells (WIRC) is the must-have
equipment to complete your timing system. Its integrated design will simplify your
installation, and ensure professional performances at competitive prices.
The Wireless Infra-Red Photocells (WIRC) detects and transmits impulses to the TBoxRadio timing console or an MLED display using a bidirectional radio protocol. Wired connection to any timing devices can still be performed via a 3.5mm Jack connector located on the back.
Up to 4 WIRC can communicate with 1 TBox-Radio.
Wireless communication
To improve robustness and increase reliability, a two-way protocol is used in the communication between Transmitter WIRC and TBox-Radio.
In case of frequency jamming or poor radio transmission data will be resent several times.
Expensive sports timing devices are history
FDS-Timing makes constant efforts in the design of cost-effective solutions while keeping as a priority performance reliability and simplicity.
Expensive sports timing devices are history
FDS-Timing makes constant efforts in the design of cost-effective solutions while keeping as a priority performance reliability and
simplicity.
Homologation
FIS : FDS.001T.20
FEI : 2019001-1B/C
| Frequencies & Power | North America: 920 - 924 MHz 100mW |
| Radio Impulse precision | 1/10’000 sec |
| Min locking time (between two detections) | 200ms for Groups A-D 500ms for Groups E-H |
| IR detection | Up to 100m |
| Operating temperature | -20°C to 60°C Charging possible only between 0°C and 45°C |
| Battery | LiPo 1700mAh |
| External Power Input | USB compatible (5V +/- 5%) up to 1A |
| Autonomy @20°C : | WIRC_RX: 150 hours radio ON / 250 hours radio OFF WIRC_TX: 180 hours |
| Dimension | 111x58x27mm |
| Weight (Tx/Rx) | 200g / 200g |
